Implementation details

NOTE: we use default_exp __init__ in order to enable this as soon as you import the module.

WARNING: cells magic are striped out during documentation generation; this is the reason why there is the same cell magic as comment too.

WARNING: the official IPython.display.Code syntax hilighter don’t seems to work. We’re creating a “drop-in” replacement that force full=True in HtmlFormatter. This seems to work properly and give us more control on code display. For details see: https://github.com/ipython/ipython/blob/72bb67ee8f57cb347ba358cce786c3fa87c470b9/IPython/lib/display.py#L667

Support classes

# Used only in tests
from fastcore.test import *

MessageBox

 MessageBox (data, background_color, text_color, emoji=None)

Initialize self. See help(type(self)) for accurate signature.

# test against html injection
mb = MessageBox('<script>alert(1)</script>', background_color='red', text_color='black')
test_eq('&lt;script&gt;' in mb._repr_html_(), True)  # Escaped = GOOD
test_eq('<script>' in mb._repr_html_(), False)  # No raw script = GOOD
del mb # we need to manually cleanup because we don't have %%testcell ;-)

# Simulate rendering inside jupyter
display(skip_message_box)
display(testcell_message_box)
display(noglobals_message_box)

This cell has been skipped

testcell

testcell noglobals

# Simulate rendering into console
[print(o.__repr__()) for o in [skip_message_box,testcell_message_box,noglobals_message_box]];

ℹ️ This cell has been skipped
🟡 testcell
🟢 testcell noglobals

Skipped because it don’t show the

from IPython.display import Code

Correct colors in jupyter but don’t get exported properly and pollutes each cell with a copy of css

from pygments.formatters import HtmlFormatter from pygments import highlight from pygments.lexers import PythonLexer from IPython.display import HTML

class Code: def init(self, data=None, url=None, filename=None, language=None): self.data = data # NOTE: skipping other arguments, we’re keeling them only for backward compatibility def repr_html(self): return highlight(self.data, PythonLexer(), HtmlFormatter(full=True)) def repr(self): return self.data

Code

 Code (data=None, url=None, filename=None, language='python')

Initialize self. See help(type(self)) for accurate signature.

# test rendering inside jupyter
Code('''
# This is a comment
class A:
   def b(self): return 1

def c(): return 3
''')


# This is a comment
class A:
   def b(self): return 1

def c(): return 3

# test rendering in console
print(Code('''
# This is a comment
class A:
   def b(self): return 1

def c(): return 3
''').__repr__())


# This is a comment
class A:
   def b(self): return 1

def c(): return 3

Valid arguments

parse_args

 parse_args (x)

test_eq(parse_args(''),set())
test_eq(parse_args('verbose dryrun'),{'dryrun', 'verbose'})
test_eq(parse_args('verbose dryrun '),{'dryrun', 'verbose'})
test_fail(lambda:parse_args('verbose dryrun xxx yyy'),contains='Invalid arguments passed')

Parse testcell arguments string

parse_testcell_args

 parse_testcell_args (x:str)

test_eq(parse_testcell_args('dryrun  verbose '),TestcellArgs({'dryrun','verbose'},None))
test_eq(parse_testcell_args('dryrun verbose (a,b)'),TestcellArgs({'dryrun','verbose'},Inout(['a','b'],[])))
test_eq(parse_testcell_args('dryrun verbose (a,b) ->(c)'),TestcellArgs({'dryrun','verbose'},Inout(['a','b'],['c'])))

test_fail(lambda:parse_testcell_args('dryrun verbose (a,b) ->c'), contains='Invalid arguments passed')

Main function

testcell

 testcell (line, cell, local_ns)

Here are some notes on the implementation of the main testcell function: + @needs_local_scope: adding this annotation will add the local_ns argument to the cell magic. We’ll use this dictionary instead of globals() to access notebook state. + arr is an intemediate structure used to easily modify the source code. + wrapped_cell will contain the final code that will be executed. + As far as I know, if the result (aka last line) of a cell is None, nothing is displayed, so the statement if _ is not None: display(_) tries to mimic this behavior when noreturn is added. + we use _locals={'_':None} to hide that variable and avoiding it get modified in _global scope.

IMPORTANT: explicitly injectiong _globals in exec is very important because the default behaviour may be different across multiple versions of IPython/Jupyter.

Let’s define %%testcelln: a shortcut to %%testcell noglobals

testcelln

 testcelln (line, cell, local_ns)

from fastcore.test import *

Test variable scope

aaa = "I'm in global scope"

# %%testcell
aaa_in_globals = 'aaa' in globals().keys()
print(f'"aaa" variable is in global namespace: {aaa_in_globals}')
assert aaa_in_globals

"aaa" variable is in global namespace: True

# %%testcelln
aaa_in_globals = 'aaa' in globals().keys()
print(f'"aaa" variable is in global namespace: {aaa_in_globals}')
assert not aaa_in_globals

"aaa" variable is in global namespace: False

del aaa

Test `noreturn`

_= '???' # let's initialize with a known value to ensure no midificaiton is happening

# %%testcell noreturn
a = 1; a

test_eq(_,'???') # Ensures last testno changes to last cell result `_`

# %%testcell
a = 1; a

test_eq(_,'???') # `testcelln` will behave like `testcell noresult`

# %%testcell
a = 1; a

test_eq(_,1) # If we let the return flow `_` will get modified

Standard use cases

Common use case when you want to seamlessly display the output of a computation

# %%testcell
a=1
a=a+3
a

Last cell results has been updated as expectedn

assert _==4 # last cell result

Despite this seems to be a normal cell variable a is not part of the global scope.

assert 'a' not in locals()

If the last statement is a display or a print it works in any case. The trick is that both these instructions are actually functions that returns None, so for the way jupyter cells works there will be no out[] block.

# %%testcell
a=1
a=a+4
display(a)

assert _==None # this is correct because both display and print returns none.
assert display('display returns none') == None
assert print('print returns none') == None

'display returns none'

print returns none

All major use cases should be covered:

# %%testcell
# simple inline
a=1; a

test_eq(_,1)

# %%testcell
# complex inline
a=1; {'value': a,
      'note': 'complex multi line statement'}

{'value': 1, 'note': 'complex multi line statement'}

test_eq(_,{'value': 1, 'note': 'complex multi line statement'})

assert 'a' not in locals() # After all these tests `a` is still not inside globals

Other available options

This magic supports the following options:

noglobals : this runs the cell in a completely isolated environment
verbose : it prints out the code before executing it
dryrun : just print the code without executing it

Here are the examples

# %%testcell noglobals
the_locals = locals().keys()
print(f'locals() = {the_locals}')
assert list(the_locals)==[] # no locals!

the_globals = globals().keys()
print(f'globals() = {the_globals}')
assert list(the_globals)==['__builtins__'] # only standard python

locals() = dict_keys([])
globals() = dict_keys(['__builtins__'])

# %%testcell verbose
b=3
b

### BEGIN
def _test_cell_():
    # %%testcell verbose
    b=3
    return b # %%testcell
try:
    _ = _test_cell_()
finally:
    del _test_cell_
_ # This will be added to global scope
### END

test_eq(_,3) # verbose display the code and execute it

# %%testcell dryrun
b=1
b

assert False # we should not be here because code is supposed to not be executed

### BEGIN
def _test_cell_():
    # %%testcell dryrun
    b=1
    b

    assert False # we should not be here because code is supposed to not be executed
try:
    _ = _test_cell_()
finally:
    del _test_cell_
if _ is not None: display(_)
### END

Finally it properly works with any kind od displayable output too:

# %%testcell skip
assert False # This should not be triggered

This cell has been skipped

# %%testcell banner
from IPython.display import Markdown
Markdown('''This shows a contextual banner, use: `testcell.global_use_banner=True` to always show the banner''')

testcell

This shows a contextual banner, use: testcell.global_use_banner=True to always show the banner

# %%testcelln banner
from IPython.display import Markdown
Markdown('''This is a banner for noglobals''')

testcell noglobals

This is a banner for noglobals

# test imports
from PIL import Image
import numpy
import matplotlib.pyplot as plt

# %%testcell
rng = numpy.random.default_rng(1234)
arr = rng.uniform(size=( 100,100,3)) * 255
img = Image.fromarray(arr.astype('uint8')).convert('RGB')
assert 'img' in locals()

NOTE: PIL.Imagehas a dedicated __repr__ dunder that jupyter will use to proeprly display it.

# Out of the test cell `img` has been removed
assert 'img' not in locals()

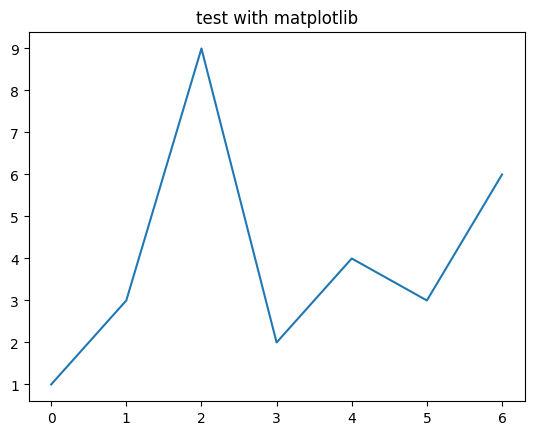

# %%testcell
plt.plot([1,3,9,2,4,3,6])
plt.title('test with matplotlib');

Even Matplotlib figures are properly displayed.

`noreturn` option

This is a pretty advanced use case: noreturn option ensures that no trace is left after cell execution; despite you see some output after the cell execution, this is only “displayed” but the last result placeholder _ is not updated. This is useful when you’re playing around with big abjects and you don’t want them to pollute neither that hidden notebook state.

NOTE: noreturn option is automatically enabled using testcelln.

# %%testcell verbose
'using %%testcell updates the last executed expression result "_"'

### BEGIN
def _test_cell_():
    # %%testcell verbose
    return 'using %%testcell updates the last executed expression result "_"' # %%testcell
try:
    _ = _test_cell_()
finally:
    del _test_cell_
_ # This will be added to global scope
### END

'using %%testcell updates the last executed expression result "_"'

assert globals()['_']=='using %%testcell updates the last executed expression result "_"'

As we can see, %%testcell magic properly update the _ state like in normal cell execution

# %%testcelln
'%%testcelln does not change "_"'

### BEGIN
def _test_cell_():
    # %%testcelln
    return '%%testcelln does not change "_"' # %%testcell
try:
    _ = _test_cell_()
finally:
    del _test_cell_
if _ is not None: display(_)
### END

'%%testcelln does not change "_"'

assert globals()['_']=='using %%testcell updates the last executed expression result "_"'

%%testcelln instead includes the noreturn option that avoids modifying last command execution _.

inout syntax

This is the most advanced option and is meant to enable selectively passing data in and out the context of testecell. It’s based on the cell as function idea, with the ability not only to input and output data but also symbols.

# Define some stuff in the global space
def my_global_func(x): return x*2
my_global_variable = 123

Selectively add objects from global state

This is useful when we’re developing something in isolation, but we need access to libraries, constants or other objects from the main scope.

print(globals().keys())

# We can now access only to these two additional functions
assert my_global_variable==123
assert my_global_func(1)==2

dict_keys(['my_global_func', 'my_global_variable', '__builtins__'])

Selectively pushing changes to global state

In this case we’re

assert 'kkk' not in globals().keys()
assert 'fff' not in globals().keys()

kkk = 'this is a global variable created inside testcelln cell'
def fff():
    # this is a global function created inside testcelln cell
    return my_global_variable # we use a global variable that should not be accessible

fff()

### BEGIN
def _test_cell_():
    global kkk
    global fff

    kkk = 'this is a global variable created inside testcelln cell'
    def fff():
        # this is a global function created inside testcelln cell
        return my_global_variable # we use a global variable that should not be accessible

    return fff() # %%testcell
try:
    _ = _test_cell_()
finally:
    del _test_cell_
if _ is not None: display(_)
### END

### GLOBALS UPDATE CODE:
global kkk; kkk=locals()["kkk"]
global fff; fff=locals()["fff"]
###

assert kkk=='this is a global variable created inside testcelln cell'
assert fff()==123

# cleanup
del kkk
del fff

This last example is about only returning data:

assert 'fff' not in globals().keys()

def a(): return 7
def fff(): return a()

test_eq(fff(),7)

# cleanup
del fff
